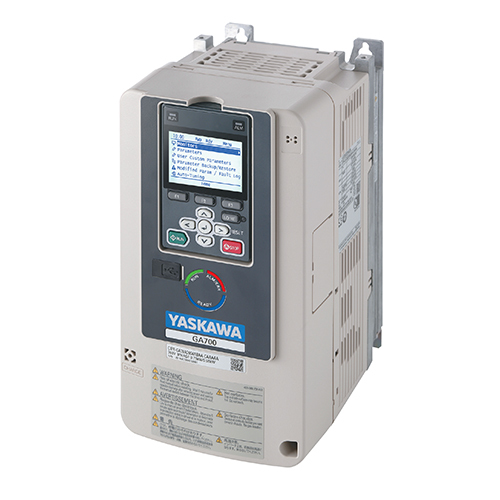

GA700 3 Phase AC Drive

Get a Price/Quote

MOQ : 1 Unit

GA700 3 Phase AC Drive Specification

Humidity %
5% - 95% (Non-Condensing)

Power Factor
>0.98

Efficiency
>98%

Insulation Material
Thermoplastic/Polymer

Mounting Type
Wall Mounted/Panel Mounted

Shape
Rectangular

Feature
Vector Control, Automatic Torque Boost, User-friendly Keypad

Surface Finish
Powder Coated/Matte

Overheating Protection
Yes, Inbuilt Protection Circuit

Operating Temperature
-10C to +50C

IP Rating
IP55

Product Type
AC Drive

Application
Electrical

Protection Level
IP55

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
High Efficiency, Low Consumption

Output Type
Multiple

Color
Grey/Black

Dimension (L*W*H)
240 mm x 185 mm x 160 mm

Weight
4.9 kg

Warranty
1 Year

Input Voltage
380-480V AC

Size
Standard (varies by model)

Phase
3 Phase

No Of Poles
2/4/6 (Standard as per model)

Material
High Grade ABS/Metal

Digital Input
7 channels (programmable)

Additional Product Specifications

Standards
CE, UL, RoHS Compliant

Startup Wizard
Yes

Display Type
LCD Digital Keypad

Braking Unit
Built-in (up to certain kW)

Relay Output
2 channels

Analog Output
1 channel (programmable)

Memory Backup
EEPROM

Control Method
V/F Control, Sensorless Vector Control

EMC Filter
Built-in

Vibration
1G (10-60 Hz)

Fan Cooling
Forced Air Cooling

Model Number
GA700 Series

Analog Input
2 channels (0-10V, 4-20mA)

Altitude
Up to 1000m without derating

Buzzer Alarm
Yes

Motor Compatibility
Induction/Synchronous Motor

Conformal Coating
PCB with protective coating

GA700 3 Phase AC Drive Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
7 - 10 Days

Main Domestic Market
All India

About GA700 3 Phase AC Drive

The GA700 3 Phase AC Drive is known for its versatility, advanced features, and robustness, making it suitable for a wide range of industrial applications. It provides accurate control of motor speed and torque, making it ideal for applications requiring fine-tuned performance. They are designed to enhance the efficiency of the motor, which contributes to overall energy savings. These are built to withstand harsh industrial environments with features such as thermal management and protective casing. GA700 3 Phase AC Drive typically features a user-friendly interface for programming and configuration, including preset parameters for common tasks.

Advanced Motor Control and Flexibility

The GA700 Series supports both induction and synchronous motors, delivering excellent adaptability for a variety of automation tasks. Its combination of V/F Control and Sensorless Vector Control ensures accurate speed and torque adjustments, perfect for dynamic industrial needs. The built-in analog and digital interfaces allow seamless connectivity with multiple devices, enhancing operational flexibility for complex systems.

Reliable, Protected, and Compliant

Manufactured with conformal-coated circuit boards and a high protection level (IP55), this drive handles harsh industrial conditions with ease. The inbuilt EMC filter reduces electromagnetic interference, and all units comply with international certifications, including CE, UL, and RoHS. Operator safety and device longevity are further bolstered by inbuilt protection circuits, overheating safeguards, and memory backup features like EEPROM.

User-Friendly Operation and Installation

Designed with operators in mind, the GA700 Series includes an LCD digital keypad, startup wizard, and programmable I/O for hassle-free setup and everyday use. The unit supports wall or panel mounting, providing installation versatility. Features such as automatic torque boost, buzzer alarm, and efficient fan cooling streamline operation and maintenance, while the compact size easily fits standard enclosures.

FAQs of GA700 3 Phase AC Drive:

Q: How does the Sensorless Vector Control benefit motor performance in the GA700 AC Drive?

A: Sensorless Vector Control provides high torque at low speeds and precise speed regulation without the need for external feedback devices. This results in smoother motor operation, better energy efficiency, and improved process control for various industrial applications.

Q: What are the key protections included in the GA700 Series to ensure safe operation?

A: The GA700 offers comprehensive protection, such as inbuilt overheating protection, protection circuits, conformal-coated PCB, and an IP55 enclosure, safeguarding against dust, water, and electrical faults. These features ensure both operator safety and prolonged device longevity in demanding environments.

Q: When should I use the built-in braking unit feature of the GA700 AC Drive?

A: The built-in braking unit should be utilized when rapid deceleration or stop of the connected motor is required, such as in high-speed conveyors or machine tools. This feature is available for specific kW ratings, ensuring efficiency and safety during frequent or sudden stops.

Q: Where can the GA700 AC Drive be installed, and what are the mounting options?

A: The GA700 is designed for flexible installation and can be wall-mounted or panel-mounted. With its IP55 protection level, it can be safely placed in both indoor industrial areas and environments exposed to dust or splashing water.

Q: What process should I follow to set up the GA700 AC Drive for initial operation?

A: Use the integrated startup wizard accessed via the LCD digital keypad. This step-by-step process guides users through key parameter settings, motor tuning, and system checks, facilitating easy and error-free commissioning, even for those with limited technical experience.

Q: How is energy efficiency achieved in the GA700 AC Drive, and what are its energy-saving features?

A: The GA700 achieves over 98%% efficiency due to advanced vector control technology, automatic torque boost, and a high power factor (>0.98). These features minimize power loss and ensure reduced energy consumption, lowering operational costs in the long run.

Q: What types of motors are compatible with the GA700, and how does its programmability enhance application usage?

A: The GA700 supports both induction and synchronous motors, and with its programmable analog/digital I/O and relay outputs, it integrates easily into a wide range of machinery. Its adaptable control makes it suitable for conveyors, pumps, fans, and other industrial electrical systems.
