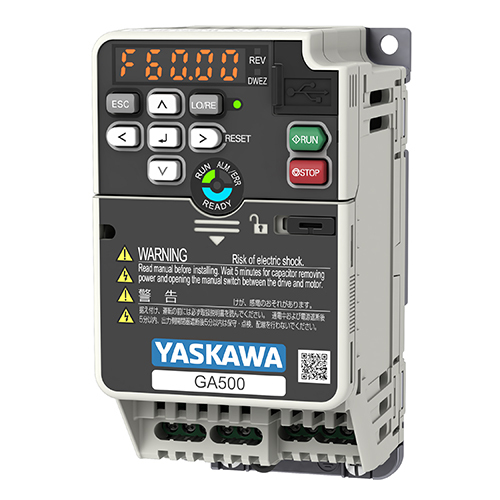

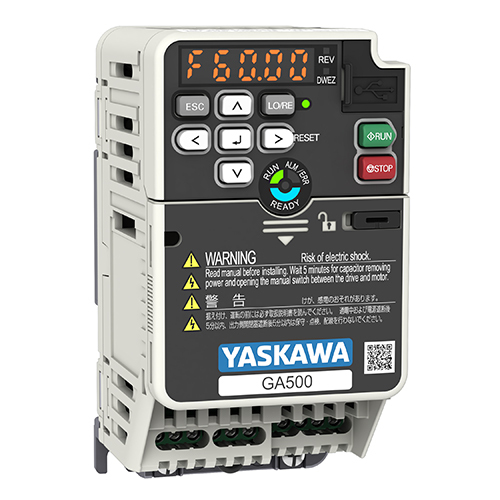

GA500 AC Microdrive

Get a Price/Quote

MOQ : 1 Unit

GA500 AC Microdrive Specification

Mounting Type
Wall/DIN Rail Mount

Shape
Rectangular

Humidity %
95% RH (non-condensing)

Efficiency
Up to 97%

Surface Finish
Matte

Overheating Protection
YES

IP Rating
IP55

Operating Temperature
-10C to +50C

Insulation Material
High-Grade Polymer

Power Factor
>0.98

Product Type
AC Drive

Application
Electrical

Protection Level
IP55

Frequency (MHz)
50/60

Rated Voltage
200-240V / 380-480V (depending on model)

Energy Consumption
Low (Energy Saving Design)

Output Type
Multiple

Color
Black/Grey

Dimension (L*W*H)
150 mm x 85 mm x 130 mm

Weight
1.6 kg

Warranty
1 Year

Size
Compact

Input Voltage
200-240V AC/380-480V AC

Phase
Three Phase

No Of Poles
2

Display Type
Digital LED Display

Motor Compatibility
Induction, Permanent Magnet, Synchronous Reluctance Motors

Input Frequency
50/60 Hz ±5%

Braking Unit
Integrated

User Interface
Intuitive keypad with parameter copy function

Noise Level
< 65 dB

Storage Temperature
-20°C to +60°C

Overload Capacity
150% for 60 sec, 200% for 3 sec

Altitude
Up to 1000 m without derating

Control Method
V/f Control, Sensorless Vector Control

GA500 AC Microdrive Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
7 - 10 Days

Main Domestic Market
All India

About GA500 AC Microdrive

The GA500 AC Microdrive is a type of variable frequency drive (VFD) used for controlling the speed and torque of AC motors. The GA500 series is known for its small footprint, making it suitable for applications with space constraints. These drives often include energy-saving features to reduce power consumption and operating costs. They are designed to provide precise control and energy efficiency for various applications, from industrial machinery to HVAC systems. These come with user-friendly interfaces and programming options, which simplify setup and operation. GA500 AC Microdrive offer precise control over motor speed and torque, enhancing performance and reliability.

Advanced Motor Compatibility

With support for Induction, Permanent Magnet, and Synchronous Reluctance motors, the GA500 AC Microdrive offers exceptional flexibility. Its dual control optionsV/f Control and Sensorless Vector Controlensure precise performance even in challenging applications. This versatility makes the drive suitable for a wide range of industries and environments.

User-Centric Interface and Operation

The GA500 is engineered with an intuitive digital LED display and an easy-to-use keypad featuring a parameter copy function for quick and reliable setup. Its integrated braking unit enhances operation safety and efficiency, while the ergonomic compact design facilitates simple wall or DIN rail mounting in spaces where every centimeter counts.

FAQs of GA500 AC Microdrive:

Q: How does the GA500 AC Microdrive ensure energy efficiency during operation?

A: The GA500 utilizes an energy-saving design, achieving operational efficiencies up to 97%%. It also maintains a high power factor (>0.98) and advanced control methods to minimize unnecessary energy consumption in various motor applications.

Q: What types of motors can be controlled with the GA500 microdrive?

A: This microdrive is compatible with Induction, Permanent Magnet, and Synchronous Reluctance motors. Its V/f Control and Sensorless Vector Control methods provide reliable and versatile speed and torque regulation for all supported motor types.

Q: When should the integrated braking unit be used, and what are its benefits?

A: The integrated braking unit is essential during rapid deceleration or frequent stops, providing safe and efficient braking without external components. It enhances operation safety, especially in demanding industrial settings requiring quick response times.

Q: Where is the ideal mounting location for the GA500 AC Microdrive?

A: Thanks to its compact, rectangular design and IP55 rating, the GA500 can be wall-mounted or fitted on a DIN rail. Its durable high-grade polymer insulation and robust enclosure allow installation in industrial environments with dust and humidity up to 95%% RH (non-condensing).

Q: What is the process for copying parameters between GA500 drives?

A: The intuitive keypad on the digital LED display includes a parameter copy function. Users can easily duplicate settings from one GA500 drive to another, streamlining installation, reducing setup errors, and maintaining consistency across multiple units.

Q: How does the GA500 protect against overheating and challenging environmental conditions?

A: The microdrive includes advanced overheating protection and operates reliably from -10C to +50C. It can be stored at temperatures from -20C to +60C and installed at altitudes up to 1000 m without performance derating, ensuring consistent operation in tough environments.

Q: What warranty and after-sales support are provided for the GA500 AC Microdrive in India?

A: The GA500 AC Microdrive comes with a 1-year warranty. Exporters, suppliers, and traders across India offer comprehensive support, ensuring reliable service and prompt assistance for installation, troubleshooting, and maintenance.
